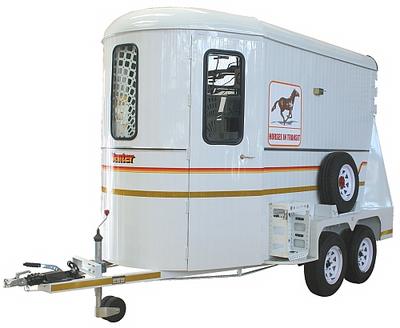

This trend setting vehicle is aesthetic, modern, aerodynamic and glides like a dream.
Features
• Front nose sports a new streamlined shape reducing wind resistance

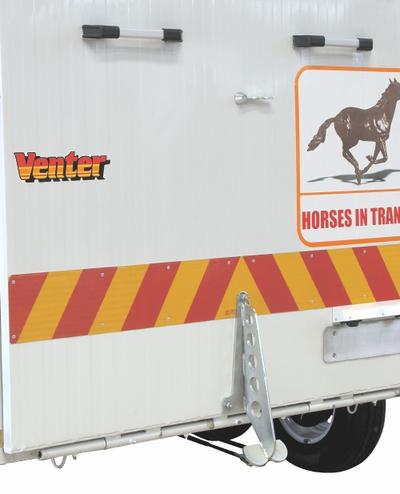

• Improved ramp, fitted with double gaslifts and push-down foot pedal, for easier opening
• Jerry can holder
• Large lockable rear door fitted above ramp, opening 270 deg
• Robust chassis, A-Frame and floor plates

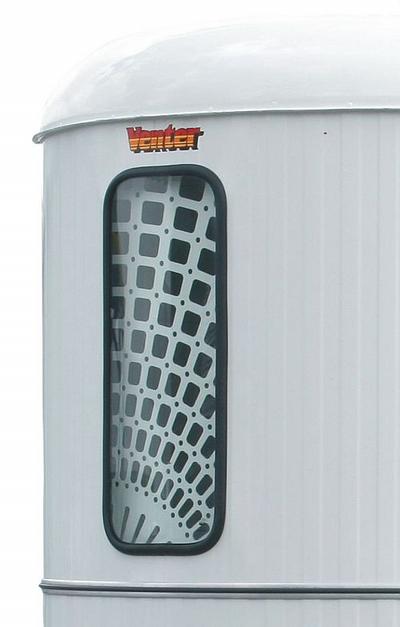

• Three large windows, middle one protected by a sheet steel screen, two outside windows are fitted with open/close sliding facility

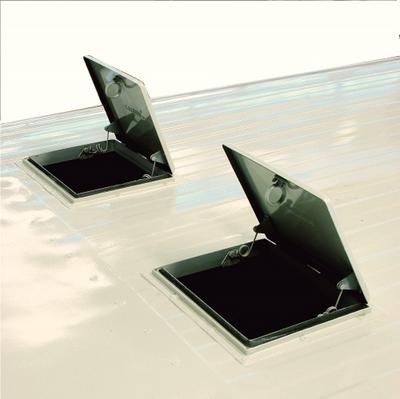

• Two air vents fitted on the roof of the trailer

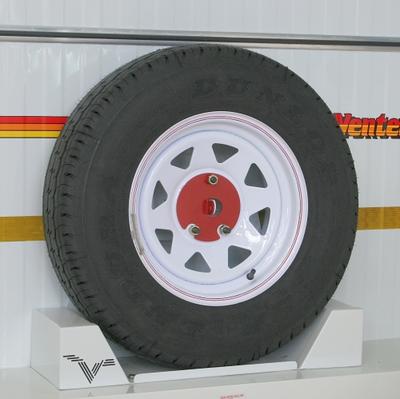

• Lockable, easily accessible spare wheel holder, fitted on top of modern improved mudguards
• Double jockey wheel 200mm dia
• Heavy duty rubber floor mats
• All doors and ramp have padlockable facilities
• Alko-Trailco coupler and axles

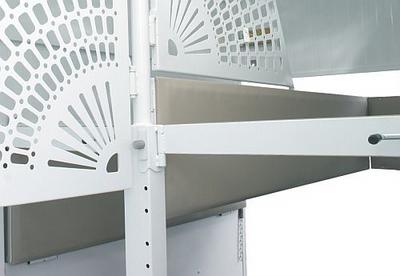

• Partition between horses of modern designed perforated steel screen, allowing horses to see each other and gain confidence

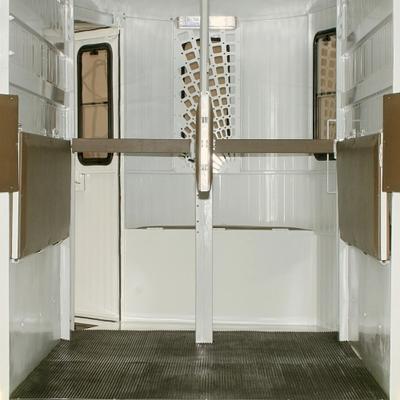

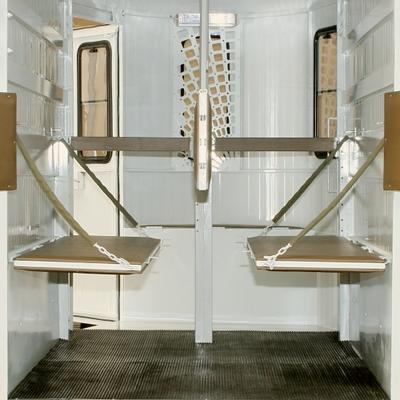

• Left and right insides of padded vinyl covered panels, fitted with fold-away beds
• Adjustable padded breast bars and rear padded panels to ensure safety of horses in transit
• Front storage compartment for fodder, grooming bags etc
• Body constructed from corrosion resistant rigidised zinc galvanised or
Electro-galvanised steel, prime coated and quality white final paint is applied

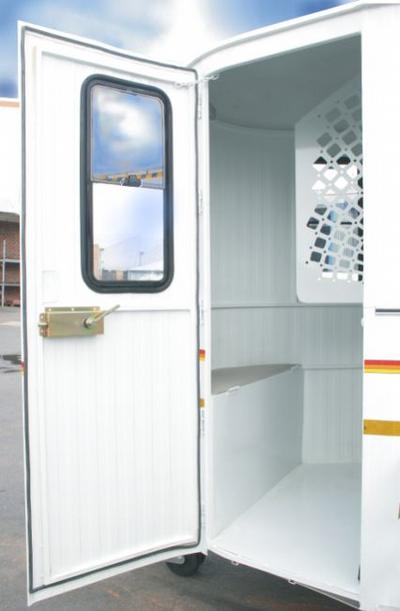

• Convenient front door for groom
• Including spare wheel 195x14 inch
• The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.

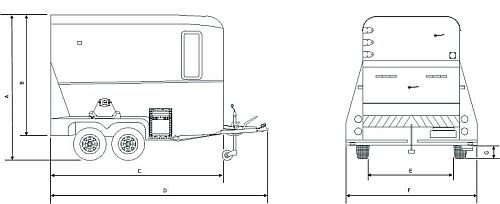

| Dimensions |
| A | Height (over all) | 2730 mm |
|---|
| C | Length (body) | 3370 mm |
|---|
| D | Length (over all) | 4695 mm |
|---|
| E | Width (inside) | 1620 mm |
|---|
| F | Width (over all) | 2250 mm |
|---|
| G | Ground Clearance | 310 mm |
|---|
| B | Height (body) | 2160 mm |
|---|
| Technical Info |
| Tare Mass | 1180 kg |
| GVM | 2800 kg |
| Pay Load | 1620 kg |
| Brakes | Run-in brakes |
| Axle Length | 2060 mm |
| Axle Capacity | 1800 kg x 2 |
| Leaf Springs | Rubber suspension |
| Wheels | 195 x 14 inch |
| Doors |
| Ramp (rear - height) | 1450 mm |
| Ramp (rear - width) | 1690 mm |
| Door (front - height) | 1900 mm |
| Door (front - width) | 675 mm |
| Door (side - height) | 1900 mm |
| Optional Equipment |
