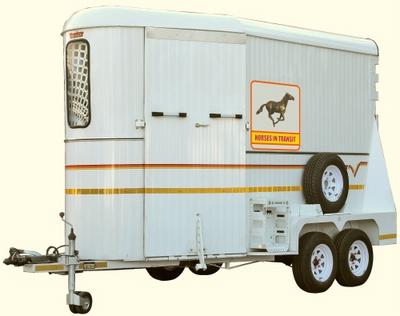

This top of the range trailer has many features that put it a class of it's own.
Features
• Front nose sports a new streamlined shape reducing wind resistance

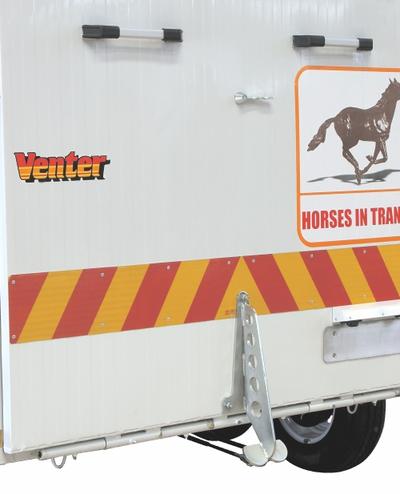

• Improved ramp, fitted with double gaslifts and push-down foot pedal, for easier opening

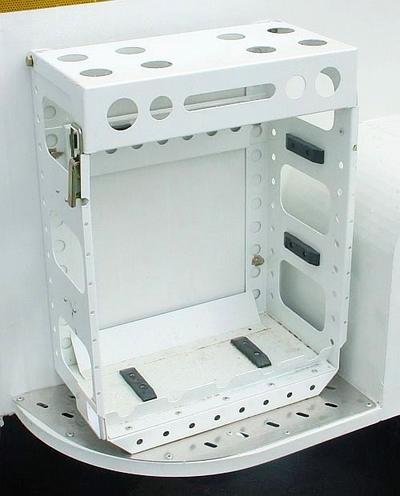

• Jerry can holder

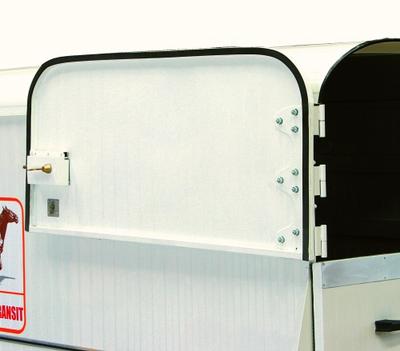

• Large lockable rear door fitted above ramp, opening 270 deg
• Robust chassis, A-Frame and floor plates

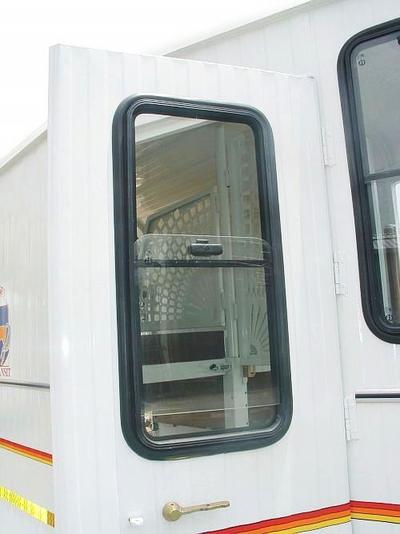

• Three large windows, middle one protected by a sheet steel screen, two outside windows are fitted with open/close sliding facility

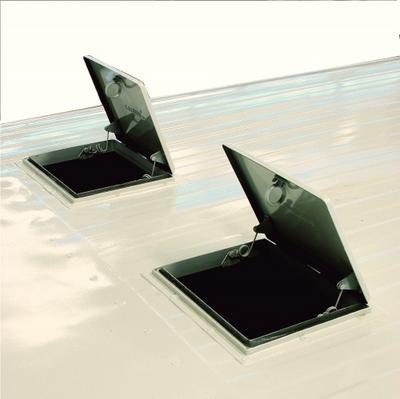

• Two air vents fitted on the roof of the trailer

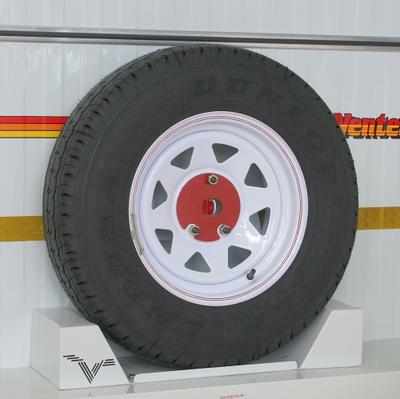

• Lockable, easily accessible spare wheel holder, fitted on top of modern improved mudguards
• Spare wheel 195 x 14 inch
• Double jockey wheel 200mm dia
• Heavy duty rubber floor mats
• All doors have stainless steel bullet hinges and ramp has padlockable facilities
• Removable rear stable doors
• Alko-Trailco coupler and axles

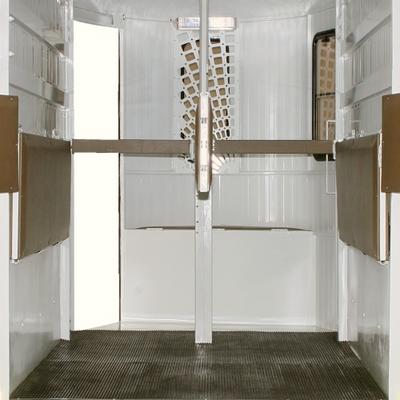

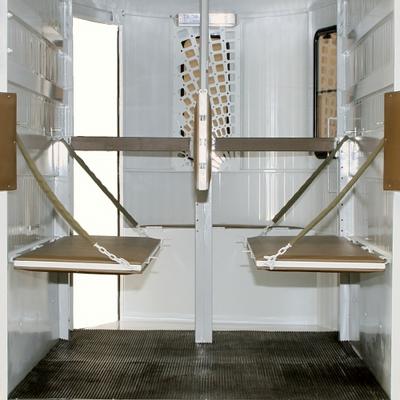

• Partition between horses of modern designed perforated steel screen, allowing horses to see each other and gain confidence

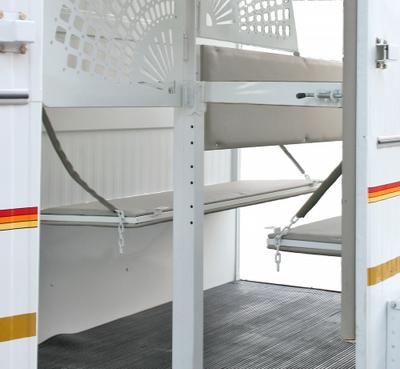

• Left and right insides of padded vinyl covered panels, fitted with fold-away beds
• Adjustable padded breast bars and rear padded panels to ensure safety of horses in transit
• Front seat with storage compartment
• Body constructed from corrosion resistant rigidised zinc galvanised or
Electro-galvanised steel, prime coated and quality white final paint is applied

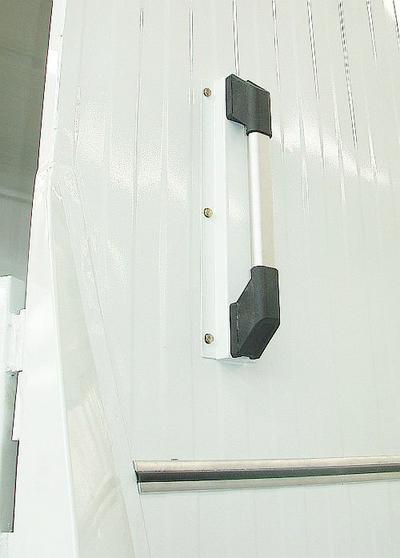

• Convenient front door for groom
• Stainless steel tether ring for horses
• Stainless steel structure for foot plates
• The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.

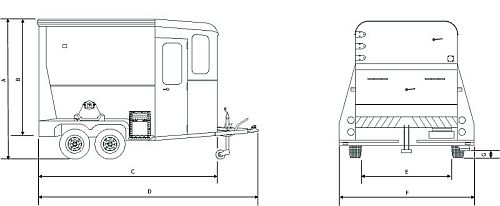

| Dimensions |
| A | Height (over all) | 2900 mm |
|---|
| C | Length (body) | 3825 mm |
|---|
| D | Length (over all) | 5000 mm |
|---|
| E | Width (inside) | 1730 mm |
|---|
| F | Width (over all) | 2380 mm |
|---|
| G | Ground Clearance | 310 mm |
|---|
| B | Height (body) | 2300 mm |
|---|
| Technical Info |
| Tare Mass | 1240 kg |
| GVM | 3200 kg |
| Pay Load | 1960 kg |
| Brakes | Run-in brakes |
| Axle Length | 2165 mm |
| Axle Capacity | 1800 kg x 2 |
| Leaf Springs | Rubber suspension |
| Wheels | 195 x 14 inch |
| Doors |
| Ramp (rear - height) | 1450 mm |
| Ramp (rear - width) | 1805 mm |
| Ramp (front - height) | 2175 mm |
| Ramp (front - width) | 1060 mm |
| Door (front - height) | 1900 mm |
| Door (front - width) | 650 mm |
